Seeders

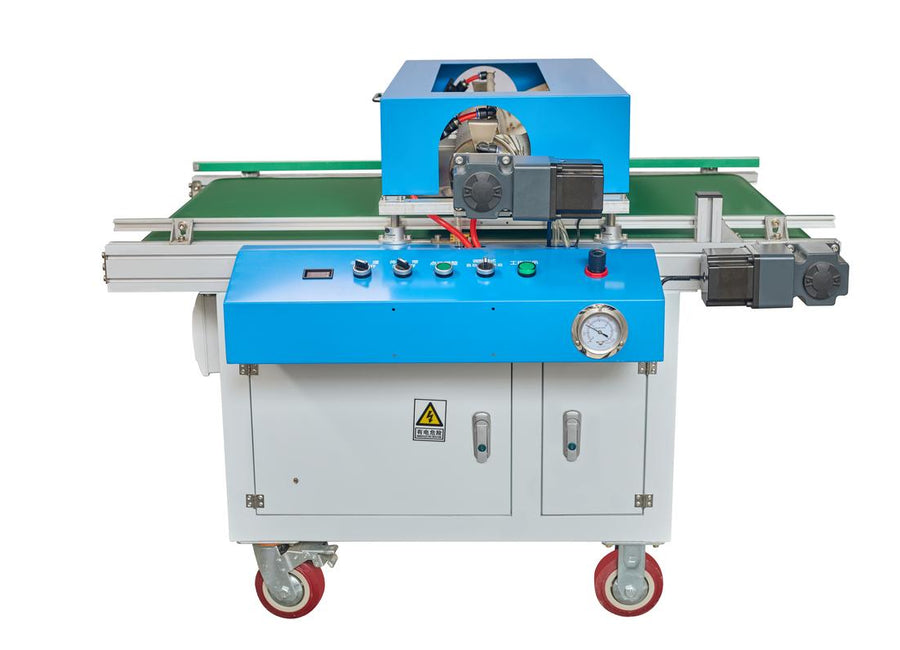

Pneumatic Drum Precision Seeder (2BS-6H)
Model:
0.3-3.0mm seeds
600-1200 trays/hr
≥97% Accuracy
Pneumatic Drum Precision Seeder — Model 2BS-6H
The 2BS-6H Pneumatic Drum Precision Seeder is designed for high-accuracy seeding of plug trays in nursery operations. Using advanced pneumatic drum te...
Price Available on Request
Production Capacity
600–1,200 trays/hour
Seeding Accuracy
≥97%
Seed Diameter Range
0.3–3.0 mm
Total Power
3 kW / 220V
✓ 2-Year Warranty
✓ Global Shipping
✓ CE Certified
Pneumatic Drum Precision Seeder — Model 2BS-6H
The 2BS-6H Pneumatic Drum Precision Seeder is designed for high-accuracy seeding of plug trays in nursery operations. Using advanced pneumatic drum technology, it achieves ≥97% seeding accuracy with a missing-hole rate of ≤3%.
Key Features
- Pneumatic drum type structure for precise seed placement
- Production capacity: 600–1,200 trays/hour
- Supports 50/60/72/105/128/200-cell plastic and foam plug trays
- Suitable for seeds 0.3–3.0mm diameter (vegetables, flowers, tobacco)
- One-touch full-process control system
- Total installed power: 3 kW, 220V
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 2BS-6H |
| Structure Type | Pneumatic Drum Type |
| Dimensions (L×W×H) | 8000×2500×2500 mm |
| Machine Weight | 800 kg |
| Production Capacity | 600–1,200 trays/hour |
| Seeding Accuracy | ≥97% |
| Missing-Hole Rate | ≤3% |
| Applicable Seed Diameter | 0.3–3.0 mm |
| Total Installed Power | 3 kW |
| Operating Voltage | 220V |
| Technical Parameter | Value |
|---|---|
| Model | 2BS-6-1 |
| Structure Type | Pneumatic Drum Type |
| Dimensions (L×W×H) mm | 8000×2500×2500 mm |
| Machine Weight | 800 kg |
| Missing-Hole Rate | ≤3% |
| Applicable Tray Cells | 50/60/72/105/128/200-cell |
| Operating Voltage | 220V |
Vegetable Nursery
Tomato, pepper, cucumber, eggplant and leafy greens with 0.3–3.0 mm seeds
Flower Production
Petunia, pansy, begonia and fine ornamental seeds for commercial greenhouses
Tobacco Seedling
Ultra-fine tobacco seeds (0.3 mm) with highest precision and lowest missing-hole rate
