Complete Horizontal Seeding Line — Needle Type
Model:
400-600 trays/hr
Needle type
≥95% accuracy
Complete Horizontal Seeding Line — Needle Type
A turnkey solution integrating substrate filling, needle seeding, soil covering, and watering in a horizontal configuration. Ideal for medium to large...
Price Available on Request
Production Capacity
600–1,200 trays/hour
Seeding Accuracy
≥97%
Seed Diameter Range
0.3–3.0 mm
Total Power
3 kW / 220V
✓ 2-Year Warranty
✓ Global Shipping
✓ CE Certified

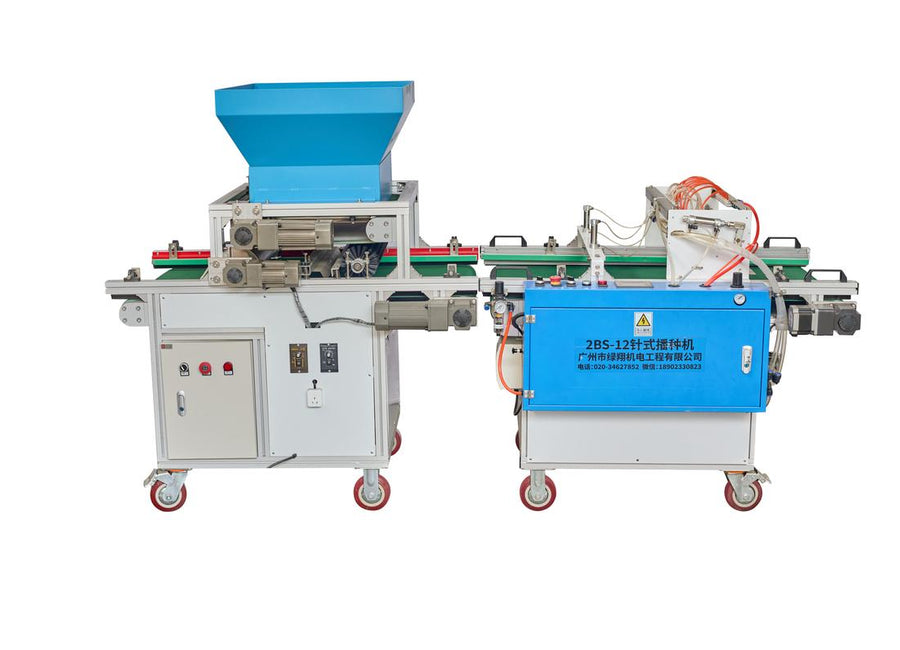

Complete Horizontal Seeding Line — Needle Type
A turnkey solution integrating substrate filling, needle seeding, soil covering, and watering in a horizontal configuration. Ideal for medium to large nursery operations.
Line Components
- Substrate tray filling machine
- Double-row needle seeder
- Soil covering & watering machine
- Conveyor system
- Control panel with one-touch operation
Production Capacity
400–600 trays/hour with ≥95% seeding accuracy
| Technical Parameter | Value |
|---|---|
| Model | 2BS-6-1 |
| Structure Type | Pneumatic Drum Type |
| Dimensions (L×W×H) mm | 8000×2500×2500 mm |
| Machine Weight | 800 kg |
| Missing-Hole Rate | ≤3% |
| Applicable Tray Cells | 50/60/72/105/128/200-cell |
| Operating Voltage | 220V |
Vegetable Nursery
Tomato, pepper, cucumber, eggplant and leafy greens with 0.3–3.0 mm seeds
Flower Production
Petunia, pansy, begonia and fine ornamental seeds for commercial greenhouses
Tobacco Seedling
Ultra-fine tobacco seeds (0.3 mm) with highest precision and lowest missing-hole rate
