Automatic Multi-row Vegetable Transplanter (2ZD-6)
Model: 2ZD-6
1.5kW
6-row
Auto transplanter

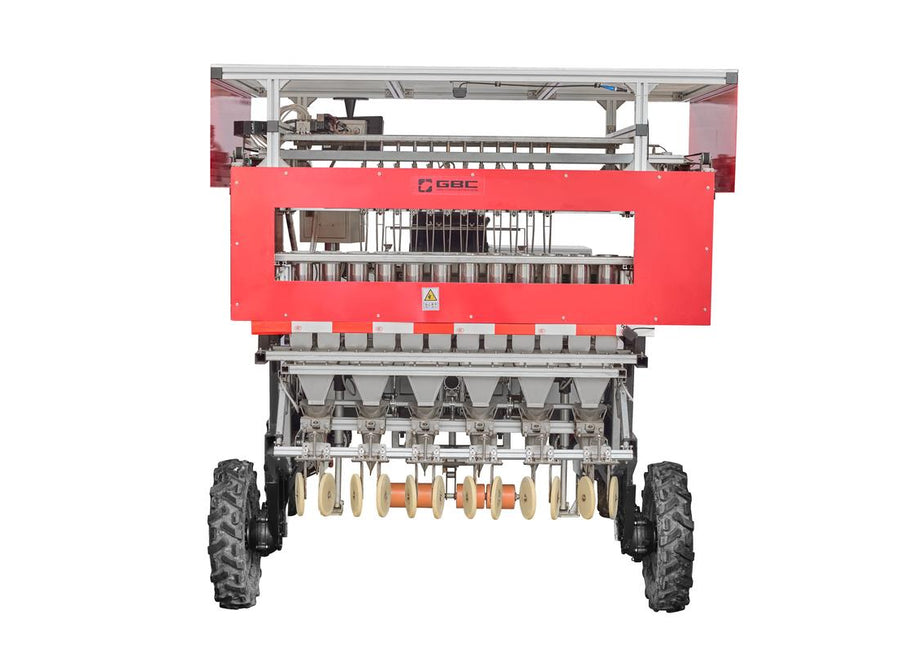

Automatic Multi-row Vegetable Transplanter — Model 2ZD-6
The 2ZD-6 Automatic Multi-row Vegetable Transplanter automates the transplanting of seedlings from plug trays to field. It handles 6 rows si...
Price Available on Request
✓ Global Shipping
✓ CE Certified
Automatic Multi-row Vegetable Transplanter — Model 2ZD-6
The 2ZD-6 Automatic Multi-row Vegetable Transplanter automates the transplanting of seedlings from plug trays to field. It handles 6 rows simultaneously with adjustable spacing.
Key Features
- Fully automatic 6-row transplanting
- Adjustable row and plant spacing
- Compatible with various plug tray sizes
- High transplanting accuracy and survival rate
- Suitable for vegetables, tobacco, and flowers
Key Features
- High-capacity transplanting: 7,200–12,000 plants/hour (depending on row configuration)
- Robotic-arm automatic seedling pick-up — fully automated extraction from plug trays
- One-touch stepless adjustment: plant spacing 8–40 cm, row spacing 15–20 cm
- Hydraulic drive with strong climbing and ridge-crossing capability on dry land
- Compatible with leafy vegetable and solanaceous (tomato, pepper, eggplant) seedlings; supports 72 and 128-cell plug trays
- Ride-on design, single-operator working position
- Depth-profiling sensor mechanism for consistent transplanting depth
- Small turning radius — suitable for both open-field and greenhouse operation
| Technical Parameter | Value |
|---|---|
| Model | 2ZD-6 |
| Type | Automatic Multi-row Transplanter |
| Transplanting Capacity | 7,200–12,000 plants/hour |
| Plant Spacing | 8–40 cm (stepless) |
| Row Spacing | 15–20 cm (stepless) |
| Compatible Trays | 72 / 128-cell |
| Drive | Hydraulic |
| Operation | Ride-on, single operator |
